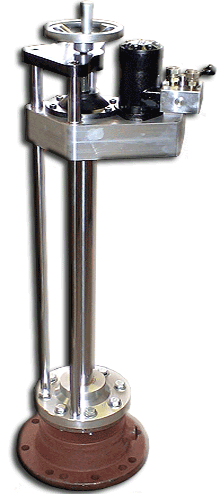

T-30
3"-12" Taps - 30" Travel
Hydraulic Drive or Optional Air Drive
|
Designed by Tappers for Tappers
Very Powerful Built in drive unit
Taps all types of pipe quickly and safely
3" - 12" pressure tap-ins
3" - 12" compatible for line stopping
Total weight of machine- 125 lbs. (without cutters or
adapters)
Adapters available in steel or aluminum
American std & British std, adaptors
Optional air drive for flammable environments
Made in USA
Operating max. pressure 300 psi. @ 100° F
Operating temperature 250° F @ 200 psi.
This Tapping Machine Taps:
- Asbestos-Cement Pipe
- Stainless Steel Pipe
- Steel Cylinder Pipe
- Carbon Steel Pipe
- Ductile Iron Pipe
- Cast Iron Pipe
- CMLC Pipe
- Copper Pipe
- PVC Pipe
- Metal Walls
- Concrete Walls
- Ship Walls
- Steel Plate
|
Line Contents
- Crude Oil
- Gasoline
- Water
- Steam
- Natural Gas
- Wastewater
- Sewage
- Checmicals
|
|
| Qtn: |
Part: |
Price |
| 1 |
T-30 Hydraulic Tapping machine w/ motor and disconnects – (no pump)
Includes operating handle, adaptor bolts, pilot pin & screws.
Operating manual. |
$ 7,999.00 |
| 1 |
4" – Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port) |
$ 539.00 |
| 1 |
6" – Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port) |
$ 646.00 |
| 1 |
8" – Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port) |
$ 796.00 |
| 1 |
10" – Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port) |
$ 1,290.00 |
| 1 |
12" – Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port) |
$ 1,389.00 |
| 1 |
3 1/2 Hot Tap Cutters (Carbide Tipped) (Many sizes available) |
$ 365.00 |
| 1 |
5 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available) |
$ 499.00 |
| 1 |
7 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available) |
$ 757.00 |
| 1 |
9 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available) |
$ 1,112.00 |
| 1 |
11 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available) |
$ 1,376.00 |
| 1 |
3"-8" Pilot drill |
$ 412.00 |
| 1 |
10"-12" Pilot drill |
$ 512.00 |
| 2 |
3"-12" Pilot spade insert tips |
$ 98.00 |
| 1 |
Hydraulic Power Unit(13 HP Honda's Series.) |
$ 3,987.00 |
| 1 |
Set of hydraulic hoses 25' (1 supply & 1 return) |
$ 275.00 |
| Total |
$22,052.50 + Shipping |
|
| |
|
|
| Not necessary to purchase complete kits, Feel free to purchase only what you need for the job. |
| |
|
