T-37 Hot Tapping Machine

T-37 Complete Turn-key Package


T-37 Pipeline Hot Tapping Machine Turn-key Complete Package

Click images to enlarge

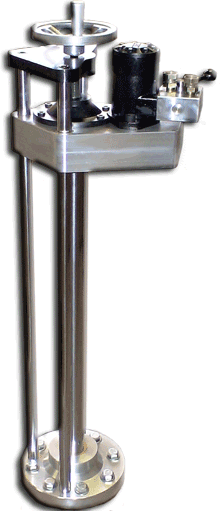

T-37 Hot Tapping Machine on Pipeline Adaptor

  • Designed by Tappers - for Tappers
  • Very powerful built in hydraulic drive unit
  • Taps all types of pipe quickly and safely
  • 3" - 16" pressure tap-ins for Municipal pipe applications
  • 3" - 16" pressure tap-ins for chilled carbon.
  • 3" - 16" compatible with line stopping
  • 37" of travel
  • Total Lengeth of Machine is 55" Tall Without Adaptor
  • Total weight of machine- 185 lbs.(without cutters or adaptors)
  • Requires approx. 8 G.P.M. @ 1700 P.S.I.
  • Adaptors available in steel or aluminum
  • British Standards Available
  • Made in the USA


  • Operating max. pressure:
    300 psi. @ 100° F
    Operating temperature:
    250° F @ 250 psi.

    Qtn: Part: Price
    1 T-37 Hydraulic Tapping machine w/ motor and disconnects (no pump)
    Includes operating handle, adaptor bolts, pilot pin & screws.
    Operating manual.

    $ 11,299.00
    Now $10,734.05

    1 4" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 6" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 8" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 10" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 12" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 14" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 16" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
    1 3 1/2 Hot Tap Cutters (Carbide Tipped) (Many sizes available)
    1 5 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available)
    1 7 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available)
    1 9 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available)
    1 11 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available)
    1 12 3/4 Hot Tap Cutters (Carbide Tipped)(Many sizes available)
    1 14 1/2 Hot Tap Cutters (Carbide Tipped)(Many sizes available)
    1 3"-6"-8" Pilot drill
    1 10"-12" Pilot drill
    1 14"-16" Pilot drill
    3 3"-12" Pilot spade insert tips

    Total

    $32,094.43 now $ 30,489.00 + Shipping

    Not necessary to purchase complete kits. Feel free to purchase only what you need for the job.


    This Tapping Machine Taps:

    • Asbestos-Cement Pipe
    • Stainless Steel Pipe
    • Steel Cylinder Pipe
    • Carbon Steel Pipe
    • Ductile Iron Pipe
    • Cast Iron Pipe
    • CMLC Pipe
    • Copper Pipe
    • PVC Pipe
    • Polyethylene Pipe
    • Fiberglass Pipe
    • Transite Pipe
    • Metal Walls
    • Concrete Walls
    • Steel Plate

    Line Contents

    • Crude Oil
    • Gasoline
    • Natural Gas
    • Domestic Water
    • Reclaimed Water
    • Potable Water
    • Chemicals
    • Wastewater
    • Sewage
    • Steam
    • Chilled Water
    • Heated Water
    Cupon after the hottap T-30 Hard at work Tapping T-30 Tapping a major main

    T-30 Hot Tapping Machine Accessories


    Hot Tapping Machine Crank Hand Wheel
    (Casted Aluminum hand wheel)
    Compatible with T-30H, T-37H Hot Tapping Machines
    Hot Tapping Machine Hand Crank Wheel
    Specs
    Item #
    Price
    T-30 and T-37 Hot tapping machine crank hand wheel
    T2-6020K35 $225.00
    Qty:

    Pilot Drill Shafts with Retainer Wire
    (Insert tips sold separately
    Compatible with T-24E, T-30H, T-37H Hot Tapping Machines
    Pilot Drill Shafts with Retainer Wire
    Specs
    Item #
    Price
    3"-6"-8" Taps Drill shaft only
    T2P-3080-RRW
     $ 512.00
    10"-12" Taps Drill shaft only
    T2P-1012-RRW
    $ 622.00
    14"-16" Taps Drill shaft only
    T2P-1416-RRW
    $ 730.00
    Qty: Lengths:

    2LBin Spade Insert Tips for Drill Shafts
    (Designed for 3" - 16" Taps)
    Compatible with T-24E, T-30H, T-37H Hot Tapping Machines
    Pilot Drill Spaid Insert Tips for Hot Tapping Machines Specs Item # Price
    1 1/32" Tip T2T-3012-RRW $ 69.95
    Qty:

    Pipeline Hot Tapping Adaptors
    ( Rated for 150PSI )
    Compatible with T-24E, T-30H, T-37H Hot Tapping Machines
    Pipeline Hot Tapping Adaptors
    Specs
    Item #
    Price
    4" Adaptor
    TA2-40C-SFM
     $ 739.00
    6" Adaptor
    TA2-60C-SFM
    $ 846.00
    8" Adaptor
    TA2-80C-SFM
    $ 996.00
    10" Adaptor
    TA2-10C-SFM
     $ 1,490.00
    12" Adaptor
    TA2-12C-SFM
     $ 1,589.00
    14" Adaptor
    TA2-14C-SFM
    $ 2,960.00
    16" Adaptor
    TA2-16C-SFM
    $ 3,910.00
    Qty: Lengths:

    Brazed-Carbide Holesaw Cutters
    ( Carbide Teeth Brazed into Steel Body )
    Compatible with T-24E, T-30H, T-37H Hot Tapping Machines
    Carbide Tipped Holesaw Cutters
    Pipeline Holesaw Cutter OD Size
    Depth
    Item #
    Price
    3 1/2"
    2 5/8"
    DT2-030-120
     $ 451.00
    5 1/2"
    3"
    DT2-050-120
    $ 653.00
    7 1/2"
    4 3/8"
    DT2-070-120
    $ 885.00
    9 1/2"
    5"
    DT2-090-120
     $ 1,290.00
    11 1/2"
    5 7/8"
    DT2-011-0120
     $ 1,419.00
    12 3/4"
    7"
    DJR-250-1275
    $ 1,954.80
    14 1/2"
    8"
    DJR-240-1450
    $ 2,275.50
    Qty: Lengths:


    13H.P. Honda Gasoline Engine
    ( American Made, Heavy Duty Gear Pumps )
    Compatible with T-30H, T-37H Hot Tapping Machines

    13 Horse Power Hydraulic Power Pack Unit
    -STANDARD GAS EQUIPMENT-
    Specs Item # Price

    • Honda's Series Of Gasoline Engines
    • Mobile Style, Rugged Hydraulic Reservoir
    • Electric Start
    • Spin On Hydraulic Filter
    • 4-Way, 3-Position Directional Control Valve
    • Quick Couplings
    • Selector Valve Standard
    • Liquid Filled Pressure Gauge

    • 13H.P. Honda Gasoline Engine
    • 8 G.P.M. @ 2100 P.S.I.
    • 12 Gallon Hydraulic Reservoir
    • 225 Lbs. Overall Weight and comes with wheels and pull handle

    2lb-13-1-8-G/C $4,299.00
    Qty:

    2LBin Adaptor FlangeBolt Kit
    ( Galvanized Steel )
    Compatible with T-24E, T-30H, T-37H Hot Tapping Machines
    Adaptor 4 Inch Flanged Bolt Kit Specs Item # Price
    Adaptor 4" Flanged Bolt Kit 4”FLG_BLT_SET $ 15.00
    Qty:

    T2 Air Drive option
    Compatible with T-30H, T-37H Hot Tapping Machines
    Specs Item # Price
    T2 Air Drive with a 4 way port for Tapping Machine T2AirDrive $6,900.00
    Qty:

    Hydraulic Quick Connect
    ( Galvanized Steel )
    Compatible with T-30H, T-37H Hot Tapping Machines
    Quick disconnect couplings for hydraulic power pack Specs Item # Price
    Quick disconnect coupler for hydraulic power pack HYD-Female $ 40.15
    Hydraulic quick coupler for hydraulic power pack HYD-Male $ 17.05
    Qty: Lengths:


    Linestop Completion Plug Holders
    ( Black Steel )
    Compatible with T-30H, T-37H Hot Tapping Machines

    Linestop completion plug holder tool Specs Item # Price
    Completion plug holder tool 4"- 6" Linestops T2PH-12-150-0406 $465.00
    Completion plug holder tool 8"- 36" Linestops T2PH-12-150-0836 $465.00
    Qty: Lengths:
