T1M Adaptable Hot Tapping Machine

T1M Complete Turn-key Package


T1M Mueller Adaptable Hot Tapping Machine Complete Turn-Key Package

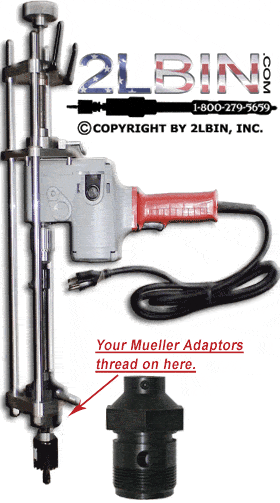

T1M Mueller Adaptable Hottap Machine

Converts Mueller D-5 to Electric power

Tired of that old school D-5!!!

Need to replace your Mueller D-5 but you don't want to replace all those adaptors!

We have the Answer: Its the T1M

  • Plugs into standard 110 outlet
  • Built-in drive unit
  • Taps all types of pipe quickly and safely
  • Machine comes standard with our newly designed 3-rail locking handles for added stability.
  • 3/4" - 2" pressure tap-ins
  • Upgrade to 3/4" - 4" pressure tap-ins
  • Total weight T1M = 28 lbs.
  • Mates to your Mueller D5
  • Optional D4 or E series conversion
  • " SORRY NO HAND-CRANK "
  • Made in the USA

  • Operating max pressure 300psi@ 100°F (std.packing)
    Operating temperature 250°F @ 250psi
    (optional) High temperature kit 495 Deg. F° @ 200PSI., copper flared

    “Adaptable to perform up to 4” Hot taps”

    Qtn: Part:
    1 T1-M tapping machine w/ electric 110V drive unit. Drive motor 110V / With GFI Plug, Back plate w/ spacers for T1-M Drive motor, Packing adaptor housing, Packing assembly, O-rings (standard temperatures), Feed Screw assembly, Upgradeable to 4inch taps
    Mates with your Mueller D5 adaptors
    1 1/4" test valve assembly
    1 18" D - Boring bar for 3/4" – 1 1/4" taps
    1 24" P - Boring bar for 1 1/2" – 2" taps
    2 1/4" Spare retention pilot drill w/wire for D style boring bar
    2 3/8" Spare retention pilot drill w/wire for P style boring bar
    3 Retention wire for 1/4" pilots
    3 Retention wire for 3/8" pilots
    1 Owners manual
    1 *Storage box
    1 11/16" Bi-Metal holesaw
    1 7/8" Bi-Metal holesaw
    1 1 1/8" Bi-Metal holesaw
    1 1 3/8" Bi-Metal holesaw
    1 1 7/8" Bi-Metal holesaw

    Total

    $3,550.00 + Shipping

    Not necessary to purchase complete kits. Feel free to purchase only what you need for the job.

    D - Boring bar allows for small cutters to screw directly on.  A 1/4" retention style pilot drill is supplied with each D boring bar in this package. P– Each boring bar has a cutter mandrel and retaining pilot drill. A 3/8" retention style pilot drill is supplied with each P boring bar in this package.

    *Storage box is for shipping purposes only! Not responsible for damages to the steel box during shipping!

    T1-4 Completing a 3" Hottap on 6.63" Steel Video:

    T1-M =3/4"-4 Taps Short or Long Rail
    Click the image to the left to increase the size. Please note that 2LBin can shorten the lengths of the Drive Rails, Feed Screw, and Boring Bars of our machine to match issues that may arise with jobs in tight locations where the application is needed.

    This Tapping Machine Taps:

    • Asbestos-Cement Pipe
    • Stainless Steel Pipe
    • Steel Cylinder Pipe
    • Carbon Steel Pipe
    • Ductile Iron Pipe
    • Cast Iron Pipe
    • CMLC Pipe
    • Copper Pipe
    • PVC Pipe
    • Polyethylene Pipe
    • Fiberglass Pipe
    • Transite Pipe
    • Metal Walls
    • Concrete Walls
    • Steel Plate

    Line Contents

    • Crude Oil
    • Gasoline
    • Natural Gas
    • Domestic Water
    • Reclaimed Water
    • Potable Water
    • Chemicals
    • Wastewater
    • Sewage
    • Steam
    • Chilled Water
    • Heated Water

    Don't be fooled by cheap imitations, we are the original manufacturer of the T1 series tapping machine

    T1-Series Hot Tapping Machine Accessories

    High Temperature Packing Assembly
    High Temp Packing Assembly
    High Temperature Packing Assembly
    . Raises max temperature to 495 Deg. F° @ 200PSI. Compatible with 2LBin T1 Series Hot Tapping Machines
    Specs
    Item #
    Price
    High Temperature Packing Assembly
    T1S-STM-450
    $365.95


    High Temperature Graphic Coated Gaskets
    High Temp Graphic Coated Gaskets
    High Temp Graphic Coated Gaskets. Two circle gaskets per order.
    Specs
    Item #
    Price
    Two circle gaskets
    3125SS
    $19.95

    1/4" x 4" Pilot Drill Bits with Retainer Wires
    1/4inch Pilot Drill x 4inch
    (2- retainer wire holes catch coupon– Total bit length 4” - Flute length 1 1/2”)
    Compatible with most Hot Tapping Machines.

    Retention Wire Installation Video
    Specs
    Item #
    Price
    1/4" x 4" Pilot Drill
    T1P-1402-RRW
    $18.95
    Wire diameter  .039 = .991 mm

    1/4" Pilot Drill Bit Retainer Wire .039 or .991mm Thickness
    3-feet of spring wire diameter .039 = .991 mm
    Retention Wire Installation Video
    Specs
    Item #
    Price
    3-feet of spring wire diameter  .039 = .991 mm
    T1P-.039-wire
    $10.00

    3/8" Pilot Drill Bits with Retainer Wires
    3/8inch Pilot Drill x 4inch or x 5inch
    (2- retainer wire holes catch coupon- Total bit length 4" or 5" Flute length 1 3/4”)
    Compatible with most Hot Tapping Machines

    Retention Wire Installation Video

    Specs
    Item #
    Price
    3/8" x 4" Pilot Drill
    T1P-3840-RRW
    $46.95
    3/8" x 5" Pilot Drill
    T1P-3850-RRW
    $48.95
    Wire diameter  .051 = 1.295 mm


    3/8" Pilot Drill Bit Retainer Wire .051 or 1.295 mm Thickness
    3-feet of spring wire diameter .051 or 1.295mm
    Retention Wire Installation Video
    Specs
    Item #
    Price
    3-feet of spring wire diameter  .051 or 1.295mm
    T1P-.051-wire
    $12.00

    1/4" x 4" Carbide Tipped Pilot Drill Bits with Retainer Wires
    1/4 x 4inch Carbide Tipped Pilot Drill with Retainer Wires
    (2- retainer wire holes catch coupon- Total bit length 4" Flute length 1 3/4”)
    Compatible with most Hot Tapping Machine
    Retainer wires come installed in drill bits

    Specs
    Item #
    Price
    1/4" x 4" Pilot Drill
    T1-1404-CT
    $31.00
    Wire diameter  .039 = .991 mm


    3/8" Pilot Drill Bits with Retainer Wires
    3/8inch Pilot Drill x 4inch or x 5inch
    (2- retainer wire holes catch coupon- Total bit length 4"or 5" Flute length 1 3/4”)
    Compatible with most Hot Tapping Machines

    Retainer wires come installed in drill bits

    Specs
    Item #
    Price
    3/8" x 4" Pilot Drill
    T1-3804-CT
    $35.00
    Call and Request
    1-800-279-5659
    3/8" x 5" Pilot Drill
    T1-3805-CT
    Call
    Wire diameter  .039 = .991 mm


    Boring Bars
    Boaring Bars
    Boring bars for the T1-2, T1-M, T1-A & T1-4 hot tapping machines

    Specs
    Item #
    Price
    18" D- Boring Bar for
    3/4" - 1 1/4" Taps
    T1-BBD-1800
    $215.00
    18" P- Boring Bar for
    1 1/2" - 2" Taps
    T1-BBP-1800
    $170.00
    24" P- Boring Bar for
    1 1/2" - 2" Taps
    T1-BBP-2400
    $231.00
    30" P- Boring Bar for
    3" - 4" Taps
    T1-BBP-3000
    $231.00
    Style P boring bars require a mandrel set for hole saw


    Solid Pilot Drill Bits
    Boaring Bars Solid Drill Bits
    Boring bar solid drill bits.
      Specs
    Item #
    Price
    7/16” x 18” Solid bit with 3/8” Shank for a 1/2" Tap and requires the 3/8” Brass Packing Assembly at bottom of this page, here.
    T1-7-16-SOLID
    $300.00
    11/16” x 18” Solid Drill 5/8” Shank for a 3/4" Tap
    T1-BBT-1800
     $432.00
    7/8” x 18” Solid Drill 5/8” Shank for a 1" Tap
    T1-BBT-1801
    $459.00

    If you do not have a way to drill we can offer solid bits for the packing tool in order to perform tap. These solid bits are threaded and pinned – not welded.

    Tapping Adaptors
    Tapping Adapters
    Threaded national iron pipe tapping adaptor with a 1/4" IP bleed off port.

    Specs
    Item #
    Price
    1" Threaded
    T1A-IP-100
    $153.95
    1 1/2" Threaded
    T1A-IP-150
    $153.95
    2" Threaded
    T1A-IP-200
    $153.95
    2 1/2" Threaded
    T1A-IP-250
    $190.00
    3" Threaded
    T1A-IP-300
    $294.72
    4" Flanged
    T1A-TFL-150
    $334.95
    Need more sizes? Click here
    National Iron Pipe (NIP) threaded adaptor



    T1-2 to T1-4 Machine Upgrade
    T1-2 to T1-4 Machine Upgrade
    (This parts package increases the T1-2 to a T1-4 machine)
    Compatible with most T1-2 Hot Tapping Machines

    Specs
    Item #
    Price
    18" P- Boring Bar for
    1 1/2" - 2" Taps
    T1-BBP-1800
    $170.00
    30" P- Boring Bar for
    3" - 4" Taps
    T1-BBP-3000
    $231.00
    2 1/2" Threaded
    T1A-IP-250
    $190.00
    3" Threaded
    T1A-IP-300
    $294.72
    4" Flanged
    T1A-TFL-150
    $334.95
    Mandrel Set x 2
    T1-BBM-3000
    $91.13
    2 3/8” Bi-Metal Holesaw
    BM-538-238
    $19.32
    2 7/8” Bi-Metal Holesaw
    BM-546-278
    $ 21.69
    3 1/2” Bi-Metal Holesaw
    BM-556-312
    $26.64

    Mandrel Set
    Mandrels for tapping machine
    (Mandrel sets are for type P Boring bars)
    Compatible with most T1-2 & T1-4 Hot Tapping Machines
    Specs
    Item #
    Price
    Mandrel Set
    T1-BBM-3000
    $91.13
    2 pins and an upper and lower mandrel set

    Power Bracket, Set Screws and Spacers
    Power Bracket and Set Screws with Spacers
    (Power Bracket comes with 4 Set Screws and 4 spacers)
    Compatible with most T1-2 & T1-4 Hot Tapping Machines
    Specs
    Item #
    Price
    Power Bracket, Set Screws and Spacers
    T1-PB , T1-PBS & T1-PBSS
    $347.68


    O-ring Kit
    12 O-Ring Kit
    Compatible with the T1-2 & T1-4 Hot Tapping Machines
    Specs
    Item #
    Price
    O-ring Kit
    T1-ORNG-P
    $29.95
    12 O-rings in one kit

    T1 Packing Assembly
    T1 Packing Assembly
    Compatible with the T1-2 & T1-4 Hot Tapping Machines
    Enables the T1 Machines to thread onto IP tapping adaptors.

    Specs
    Item #
    Price
    3/8” Brass Packing Assembly
    T1-3-8-PACK
    $155.00
    5/8” Brass Packing Assembly
    T1-BrassPacking
    $155.00
    Adapter w/Packing
    T1-packing
    $210.00
    Adapter assembly goes inside the packing assembly

    Iron Pipe Threaded Full Port Ball Valves
    Brass Ball Valves Ball Valves Specs
    The 171N Brass Ball Valves have a rugged, dependable design, meeting rigid specification for world wide use. Every valve is individually tested in an open and closed position at 80 psi. The two piece 171N full port design is available in sizes ¹⁄₄ - 4”. A wing handled version of the 171N is also available as in Figure 171N-T in sizes ³⁄₈ - 1”. All valves conform to MSS-SP-110, MSS-SP25 and Federal Specification WW-V-35B Type II, Class A

    Specs
    Item #
    Price
    1/4” Full Port Ball Valve
    2lb-1-4-171N
    $38.35
    1/2” Full Port Ball Valve
    2lb-1-2-171N
    $42.60
    3/4” Full Port Ball Valve
    2lb-3-4-171N
    $61.85
    1” Full Port Ball Valve
    2lb-1-171N
    $84.60
    1 1/4” Full Port Ball Valve
    2lb-1-1-4-171N
    $144.90
    1 1/2” Full Port Ball Valve
    2lb-1-1-2-171N
    $196.25
    2” Full Port Ball Valve
    2lb-2-171N
    $356.70
    2 1/2” Full Port Ball Valve
    2lb-2-1-2-171N
    $465.70
    3” Full Port Ball Valve
    2lb-3-171N
    $599.00

    For more Full Port Ball Valves Click Here


    Bi Metal Hole Saws
    Double Stack Bi-Metal High Speed Steel Hole Saw Cutters
    High-speed steel cutting edge provides shock resistant teeth and resists tooth strippage. 4/6 positive tooth configuration allows for fast, smooth cuts and less vibration. Packaged in individual boxes.
    Features:
    • 4/6 variable tooth configuration
    • 1 7/8" (48 mm) depth of cut
    • 3/16" (5 mm) thick heavy-duty backing plate eliminates need for drive plate

    Application information:

    • Creates holes for pipe and tubing installations, door lock installations, electrical conduits, hoses, and antennas.
    • Ideal for plumbing, construction, aircraft, electrical, maintenance, and automotive applications.
    • Use in steel, aluminum, brass, cast iron, plastic, or wood

    Specs
    Item #
    Price
    7/8” Single Stack Cutter
    BM-514-780
    $11.82
    1 1/8” Single Stack Cutter
    BM-518-118
    12.84
    1 3/8” Single Stack Cutter
    BM-522-138
    13.29
    1 7/8” Single Stack Cutter
    BM-530-178
    $16.41
    2 3/8” Single Stack Cutter
    BM-538-238
    19.32
    2 7/8” Single Stack Cutter
    BM-546-278
    $ 21.69
    3 1/2” Single Stack Cutter
    BM-556-312
    $26.64
    Need more sizes? Click here


    Carbide Tipped Hole Saws
    Double Stack Carbide Tipped Hole Saw Cutters
    Carbide tips allow for greater heat and wear resistance than bimetal tips, provide up to 10 times greater tool life on abrasive materials, and come packaged in individual boxes.
    Features:
    • 3/16" (5 mm) thick heavy-duty backing plate eliminates the need for drive plate
    • 3 teeth per inch for aggressive cutting.
    • 1 5/8" (41 mm) depth of cut

    Application information:

    • Ideal for plumbing, marine, and aircraft applications.
    • Use in wood laminates, fiberglass, plywood, and tile.

    Specs
    Item #
    Price
    7/8” Single Stack Cutter
    CT-14-780
    $  19.47
    1 1/8” Single Stack Cutter
    CT-18-118
    $  24.09
    1 3/8” Single Stack Cutter
    CT-22-138
    $  27.09
    1 7/8” Single Stack Cutter
    CT-30-178
    $  35.53
    2 3/8” Single Stack Cutter
    CT-38-238
    $  44.86
    2 7/8” Single Stack Cutter
    CT-42-278
    $  50.86
    3 1/2” Single Stack Cutter
    CT-56-312
    $  65.70
    Need more sizes? Click here
